Note: We have warehouses in the US, UK, and Germany, and we will ship to you according to your country to avoid paying import duties.

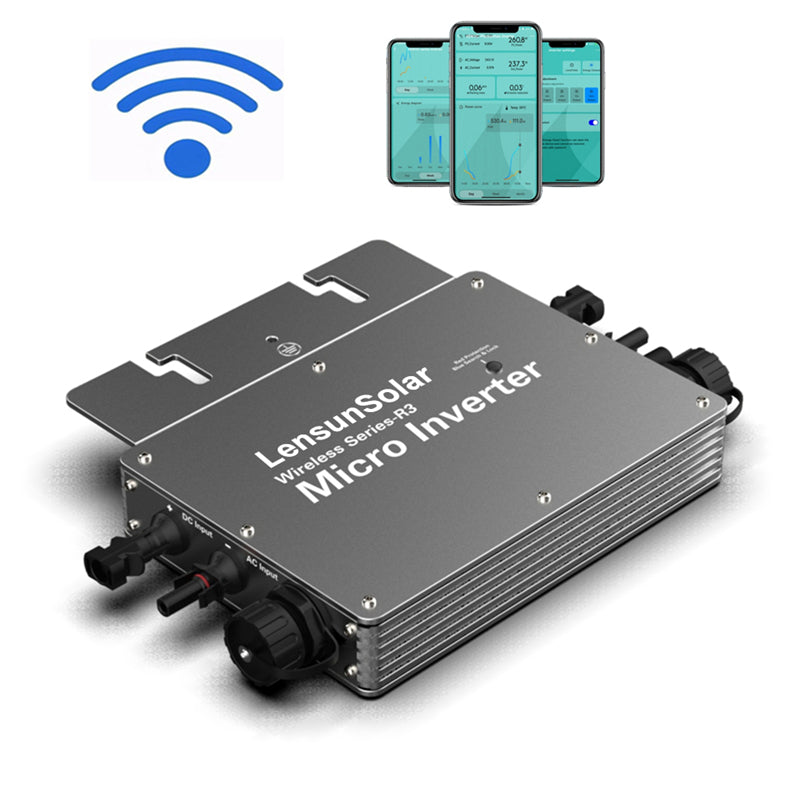

monitor the working status of your inverter anytime and anywhere. This
Smart On Grid system improves safety; maximizes solar energy harvest;
increases system reliability, and simplifies solar system design,
installation, maintenance, and management.

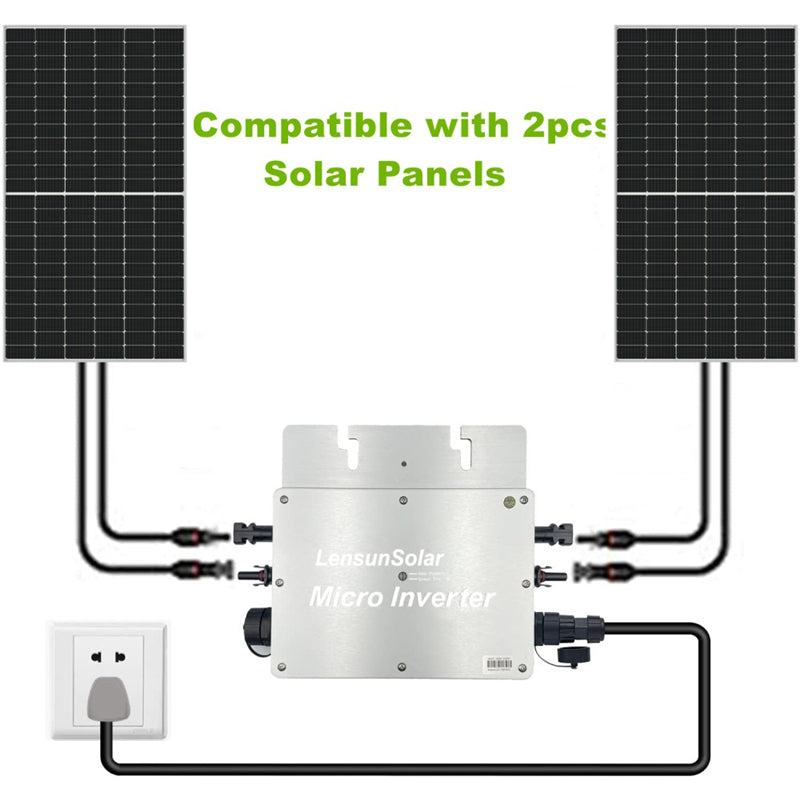

The built-in maximum power point tracking engine (MPPT) can better capture changes in lighting, and it can work even in rainy weather. It can maximize the capture and collection of sunlight. The inverter is compatible with a variety of conventional solar panels with an open circuit voltage of 22~60V.
Lensunsolar micro inverters adopt waterproof flow line design, which can provide better heat dissipation function for the equipment. The power output mode of Lensun Micro-Inverter is reverse transmission technology, which supplies power to the load first, and then uploads the excess power to the local power grid.
1. Lensunsolar inverter is easy to operate, convenient, and fully functional.
6. Waterproof IP65,10 years warranty
Product Parameters
Model |
VWC-600 |
Maximum input power |
2×400Watt |
Output voltage mode |
120V/230V Auto Switch |
PV Open circuit voltage |
30-60 Voc |
Operating voltage range |
22-60V |
Starting voltage range |
22-60V |
short-circuit current |
2*15A |
Maximum working current |
2*12A |
Output parameters |
@120V |
@230V |
Output peak power |
660Watt |
660Watt |
Rated output power |
600Watt |
600Watt |
Output current |
5A |
2.6A |
AC voltage range |
80-160VAC |
180-280VAC |
AC frequency range |
47-52/57-62Hz |
47-52/57-62Hz |
Power factor |
>95% |
>95% |
Number of branch connections |
6 units |
12 units |
Output efficiency
Static MPPT efficiency |
99.5% |
Max output efficiency |
95% |
Loss of power at night |
<0.5w |
Total current harmonics |
<5% |
Appearance and technical features

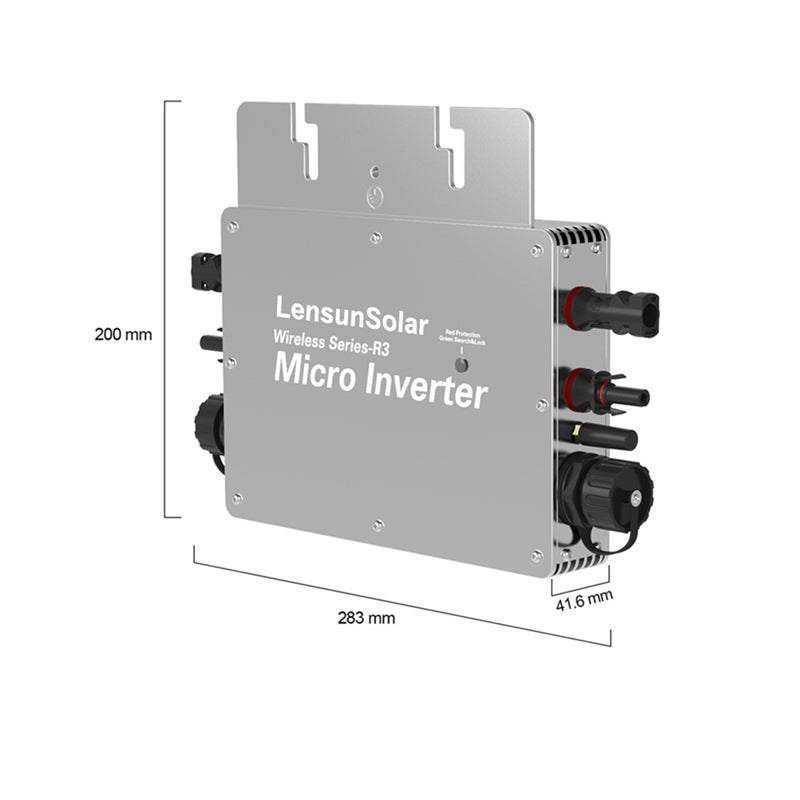

Size(L×W×H), Net amount |
283×200×41.6mm 1.56kg |
Waterproof grade |
IP65 |
Temperature range |
-40°C to +65°C |
Heat dissipation mode |
Self-cooling |
Communication mode |
Wifi |
Power transmission mode |
Reverse transmission,Load priority |
Monitoring system |
Mobile phone APP、Browser |
Electromagnetic compatibility |
EN50081.part1 EN50082.Part1.CSA STD.C22.2 No.107.1 |
Power grid |
EN61000-3-2 EN62109.UL STD.1741 |
Certificate |
VDE, 50549 |

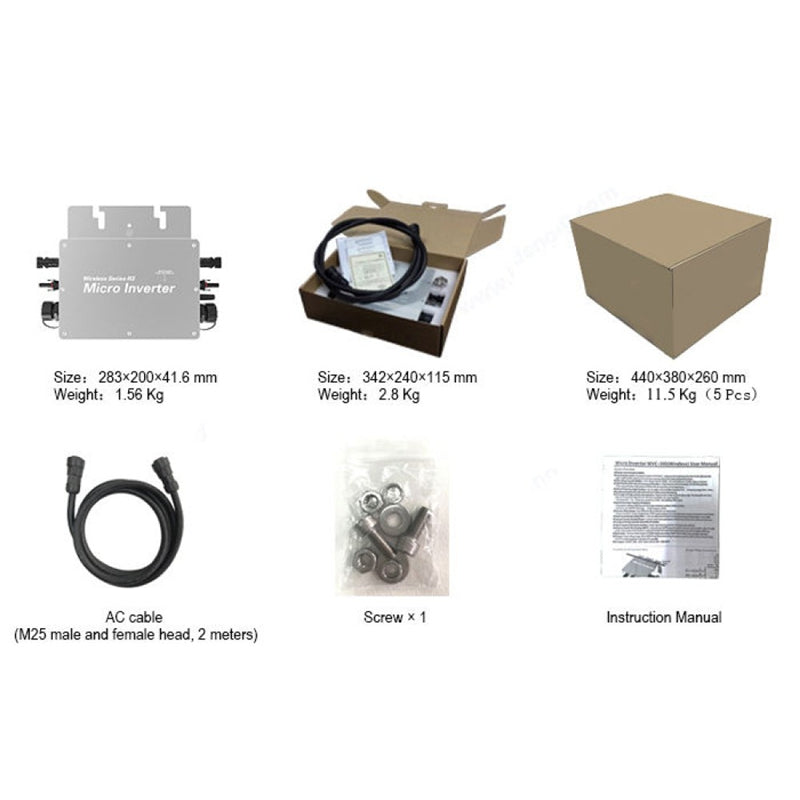

Packing:
1 x 600w Lensunsolar microinverter

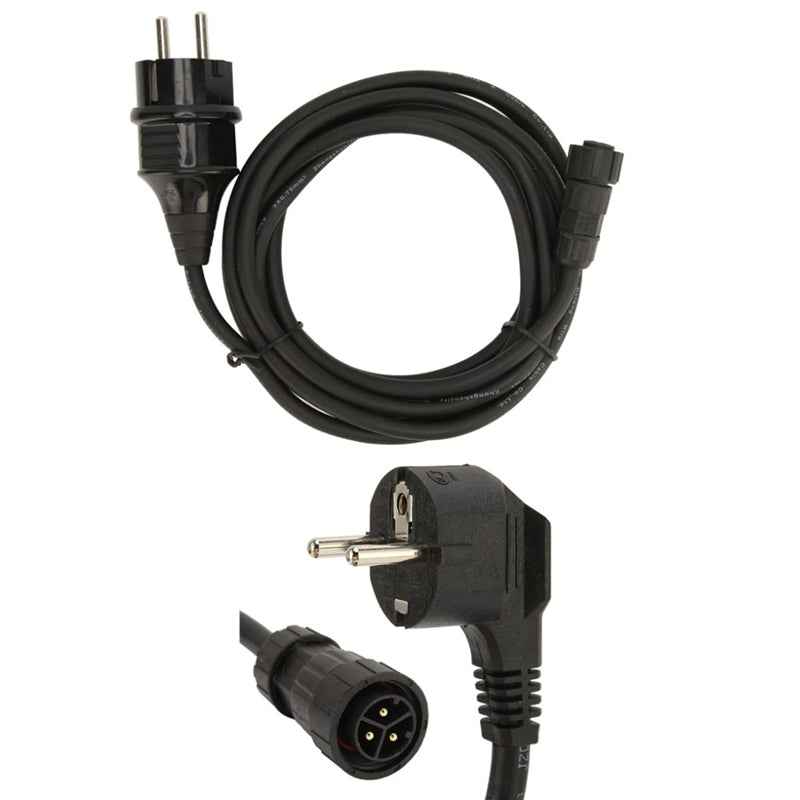

1 x 1m AC plug cable
