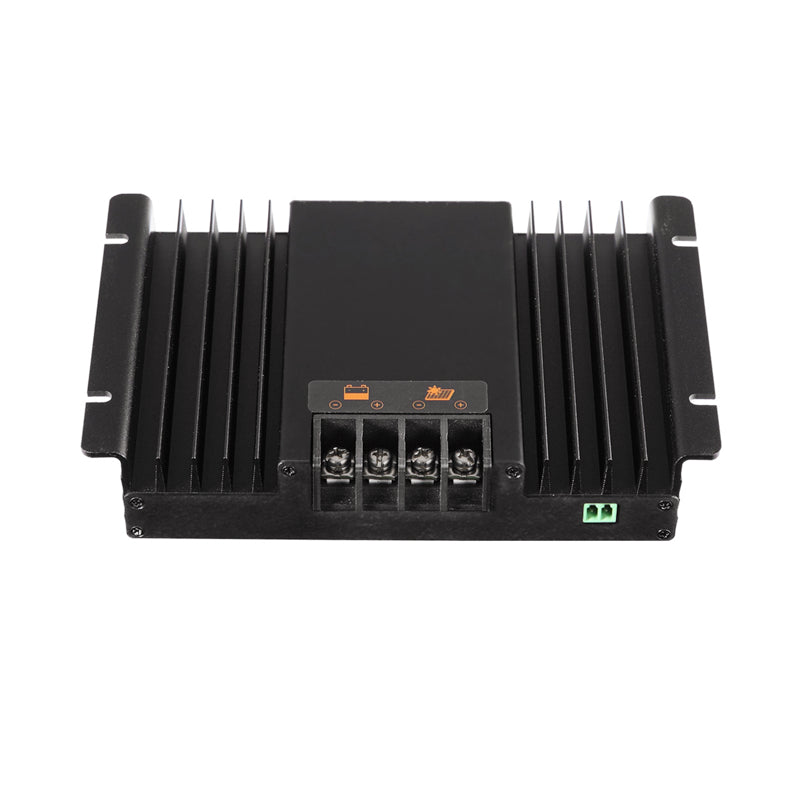

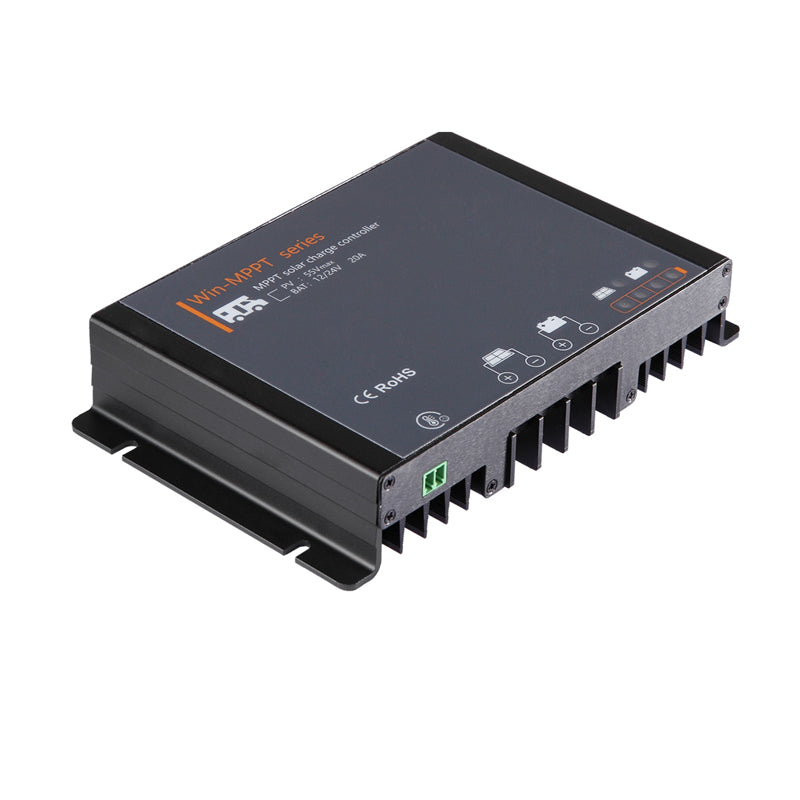

Lensun Waterproof 20A MPPT Solar Charge Controller Regulator
Come with Battery Alligator Clips and Solar Connectors for Lithium-ion LiFePO4 AGM Gel Lead-Acid Batteries
12V 24V Auto for RV Boat Solar System.
Lensun 20A Waterproof MPPT solar controller comes with battery clips and solar connectors, ready to charge the battery, suitable for Lensun foldable solar panels and any other solar panels with solar connectors.
The Solar charge controller is based on a common negative design and advanced MPPT control algorithm, with intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current.
Bluetooth, Support mobile phone APP, realize wireless monitoring function of solar controller.
Compatible with Various Battery options: Sealed, Gel, Flooded, and Lithium-ion.
Feature
1. Accessories include standard connector- for solar panels; Anderson connector for pre-wired RV; 20A standard fuse; alligator clamps for car battery or 12 volts lead acid battery.
2. Lithium, Liquid, Gel, Flooded, and AGM battery for selection.
3. Waterproof design, suitable for indoor, outdoor, camping, boat, and RV use.
4. Innovative MPPT technology with High tracking efficiency of up to 99% and peak Conversion efficiency of 98%. Automatically detect 12V or 24V DC system voltages. Four stages charge way: MPPT, boost, equalization, float.
5. Bluetooth, Support mobile phone APP, realize wireless monitoring function of solar controller.
Dual automatic restriction function when exceeding rated Charging Power and Charging Current.Great for RVs, boats, communication base stations, household systems, field monitoring, etc.
Specification:
Solar Panel Parameters
Max volt on PV(-20℃): 55V
Max volt on PV(25℃): 50V
Max input power: 260W/520W
MPPT tracking range: (Battery Voltage + 1.0V) ~Voc*0.9
Battery Parameters
System voltage: 12/24V automatical recognization
Max charging current: 20A
MPPT charging voltage: <14.5/29.0V@25℃
Boost voltage: 14.0~14.8V/28.0~29.6V(default:14.5/29.0V@25℃）
Equalization voltage: 14.0~15.0V/28.0~30.0V(default:14.8/29.6V@25℃）
Float voltage: 13.0~14.5V/26.0~29.0V(default:13.7/27.4V@25℃）
Low voltage disconnect: 10.8~11.8V/21.6~23.6V(default: 11.2/22.4V)
Low voltage reconnect: 11.6~12.8V/23.2~25.6V(default: 12.0/24.0V)
Charging target volt: 10.0~32.0V(Lithium, default: 14.4V)
Charging recovery volt: 9.2~31.8V(Lithium, default: 14.0V)
Low voltage disconnect: 9.0~30.0V(Lithium, default: 10.6V)
Low voltage reconnect: 9.6~31.0V(Lithium, default: 12.0V)
Max volt on bat terminal: 35V
Battery type: Gel, AGM, Liquid, Lithium(default: Gel)
System Parameters
Max tracking efficiency: >99.9%
Max conversion efficiency: 98.0%
Dimensions: 164*107*32mm
Weight: 900g
Communication: BLE
Protection degree: IP54
APP Download
For iPhone, download “Solarlife” from the Apple APP Store
For Android Phone, download “SolarLifeBT” in Google Play Store
Packing:

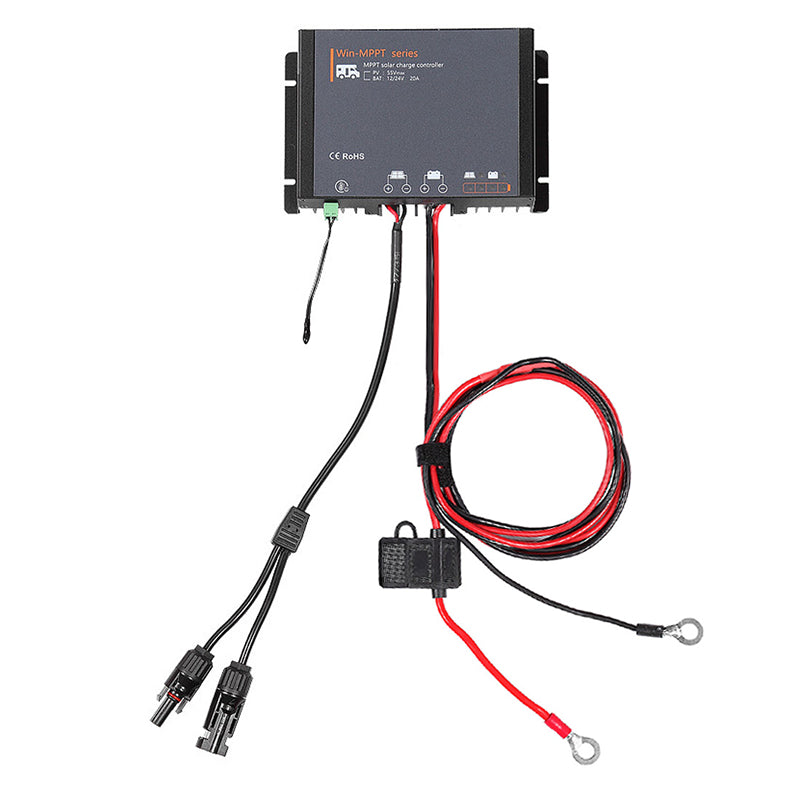

1 x 20A Waterproof MPPT solar regulator with battery clips and solar connectors
