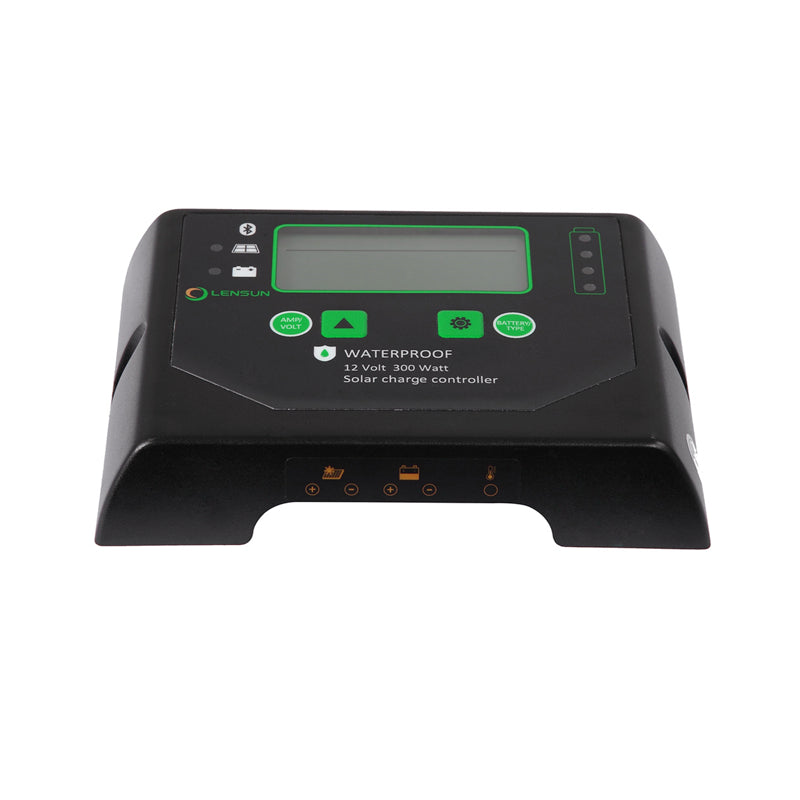

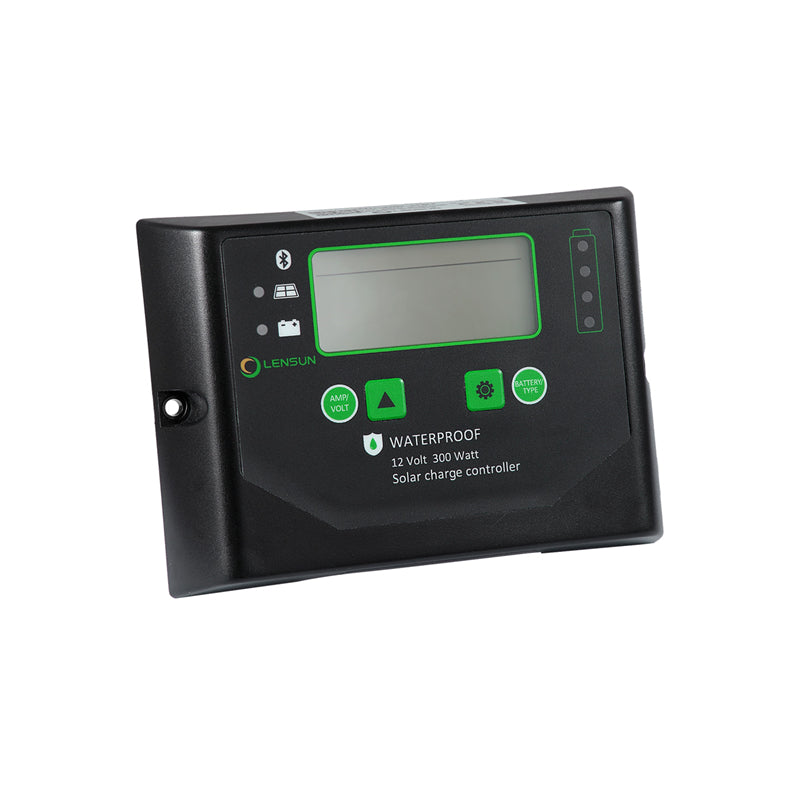

Lensun Waterproof 12V 300W PWM Solar Controller LCD Display
Charge for AGM, Liquid, GEL, and Lithium Battery
Waterproof: Suitable for indoor or outdoor use
Battery Types: Lithium-ion, LiFePO4, LTO, Gel, AGM, Flooded, and Calcium
Bluetooth: Support mobile phone APP, wireless monitoring
Electrical Protection
- Spark-free Protection
- Reverse polarity solar and battery connection
- Reverse current from battery to solar panel protection at night
- Over temperature protection with derating charging current
- Transient overvoltage protection at solar input and battery output protects against surge voltage
Feature:
1. Waterproof design, suitable for indoor or outdoor use
2. Battery Type Compatible Lithium-ion, LiFePO4, LTO, Gel, AGM, WET, and Calcium
3. Support mobile phone APP, realize wireless monitoring function of solar controller
4. LCD design, read operating data and working conditions easily.
5. Adopt Bluetooth 4.2 and BLE technology, communication distance up to 10m
6. Real-time automatic fault alarm
7. Built-in temperature sensor, when the temperature exceeds the set value, the charging current will lower followed by the decrease of temperature, to control the controller’s temperature rise
8. Four stages charge way: Fast, boost, equalization, float
9. With current-limiting charging mode, when the power of the solar panel is over-sized and the charging current exceeds the rated current( ≤60% of rated current), the controller will lower the charging power, which enables the system to work under the rated charging current
10. Perfect EMC & thermal design
Specification:
Model: Win300
System Voltage: 12V
Max Charging Power: 300W
Max Volt on Bat. Terminal: 25V
Max volt on PV Terminal: 40V
Self-consumption: 10mA
Communication: Bluetooth
Grounding: Common Negative
Environmental Parameter:
Working temperature: -20 to +55 C
Storage temperature: -25 to +80 C
Ambient Humidity: 0-100% RH
Enclosure: IP54
Mechanical Parameter:
Dimensions: 144x104x28mm
Weight: 180g
Mounting dimensions: 134x52(mm)
Mounting hole size: φ4mm
Maximum Terminals Wire Size: 10AWG(4mm²)
Packing:
1 x 12V 300W PWM Waterproof LCD solar regulator
