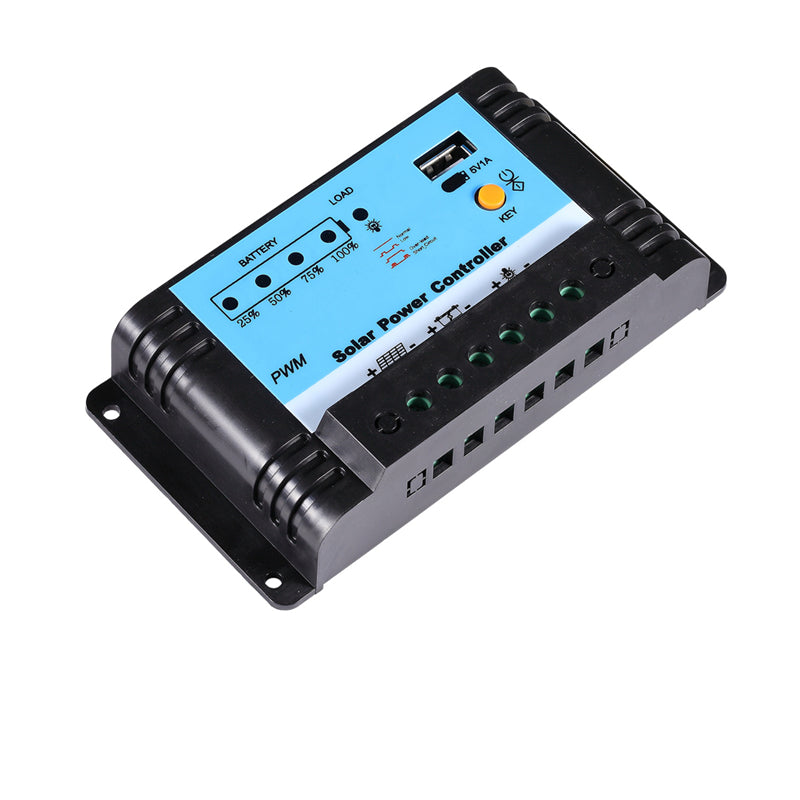

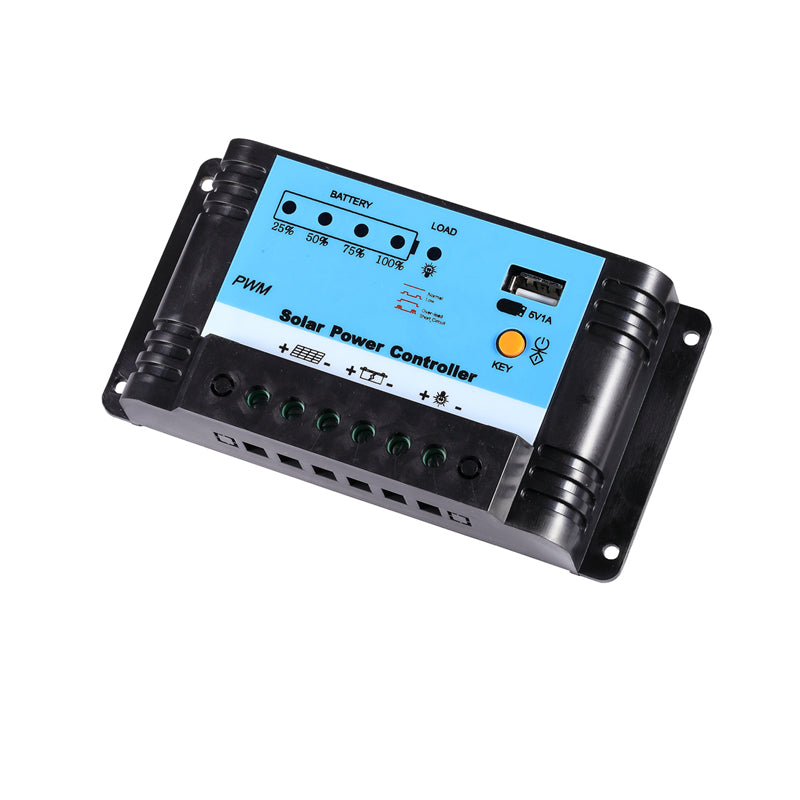

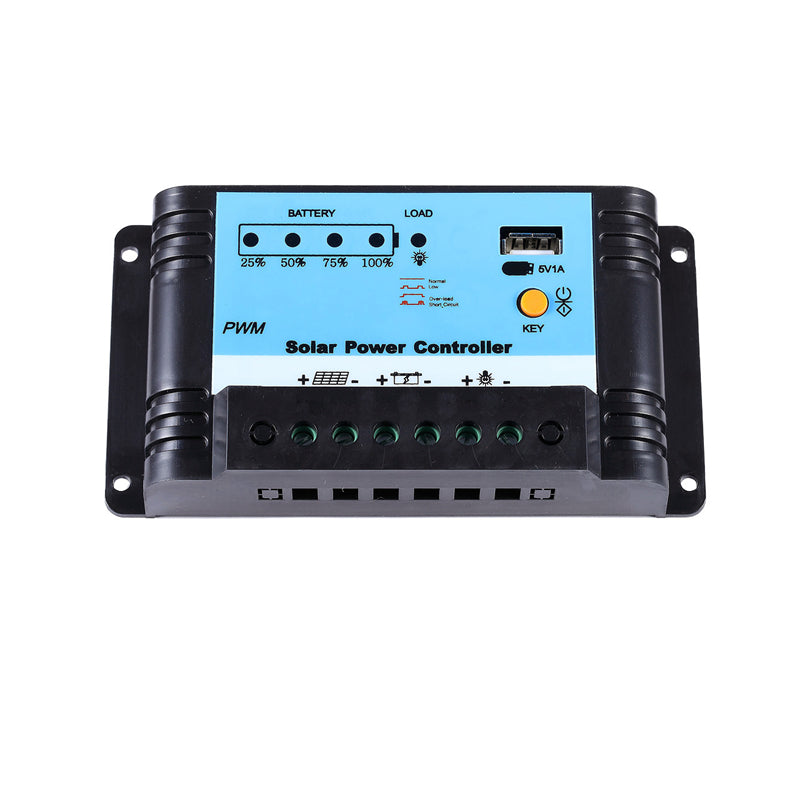

10A PWM solar panel regulator charge controller 12V/24V Auto
with USB Port for Charge Mobile Phone, 5V USB Device
Function:
1. 12V/24V Automatic identification by system.
2. A key button control output operations, simple and easy to use.
3. The improved 3-section computing method can weekly give the battery a Balanced charging. It can stop the battery from being unbalancing and vulcanizing and let the battery been used for more time.
4. The controller is equipped with the serial PWM charging main circuit with additional 3%~6% efficiency than the non-PWM circuit which can work for more time and increase the using period of the system.
5. Built in temperature sensor with high precision temperature compensation.
6. Provide USB interface for mobile phone or other mobile devices.
7. Visualized LED display which can let the users get to know the conditions of solar power and storage battery.
8. Overcharge, over discharge and overload protection; Electronic short circuit protection; Reverse connect preventing protection.
9. Lightning prevention.
Specification:
System voltage: 12v/24v auto
System current: 10A
No-load loss: <7mA
Solar panel input voltage: <50V
Over voltage protection: 16.5V; x2/24V
Overvoltage recovery: 15.0v; x2/24V
Balance charge voltage: 14.4v; x2/24V
Increase charge voltage: 14.6v; x2/24V
Float charge voltage: 13.8V; x2/24V
Charging return voltage: 13.3v; x2/24V
Discharge protection voltage: 11.1V; x2/24V
Discharge protection voltage: 12.8V; x2/24V
USB port: Max output 5V/1A
Size: 144x76x34mm/5.7x3x1.4inches
Net weight: 0.2kg/0.44 lbs
Package Includes:
1 x 10A 12V/24V PWM solar controller with USB Port
