Note: We have warehouses in the US, UK, and Germany, and we will ship to you according to your country to avoid paying import duties.
Lensun 200W(4x50W) Waterproof Foldable Solar Panel
Lensun’s new IP67 waterproof, 11-layer monolithic foldable panel. Features dual aerospace-grade window films—same as commercial aircraft—for unmatched UV and impact resistance.
Built to endure vibration, extreme temperatures, and rugged outdoor use—reliably powering your adventures anywhere.
Feature:
1. 11-Layer Monolithic Lamination: Seamless 11-material encapsulation, it delivers unmatched resilience against vibration, extreme temperatures, and harsh outdoor abuse.
2. Aerospace-Grade Window Film: Dual layers of aircraft-window composite for superior UV, impact, and microcrack resistance—built to last in extreme conditions.

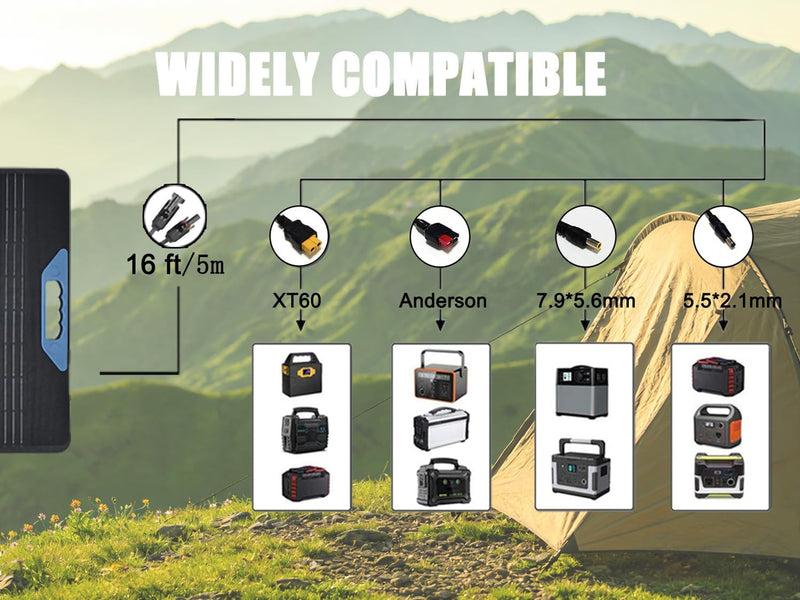

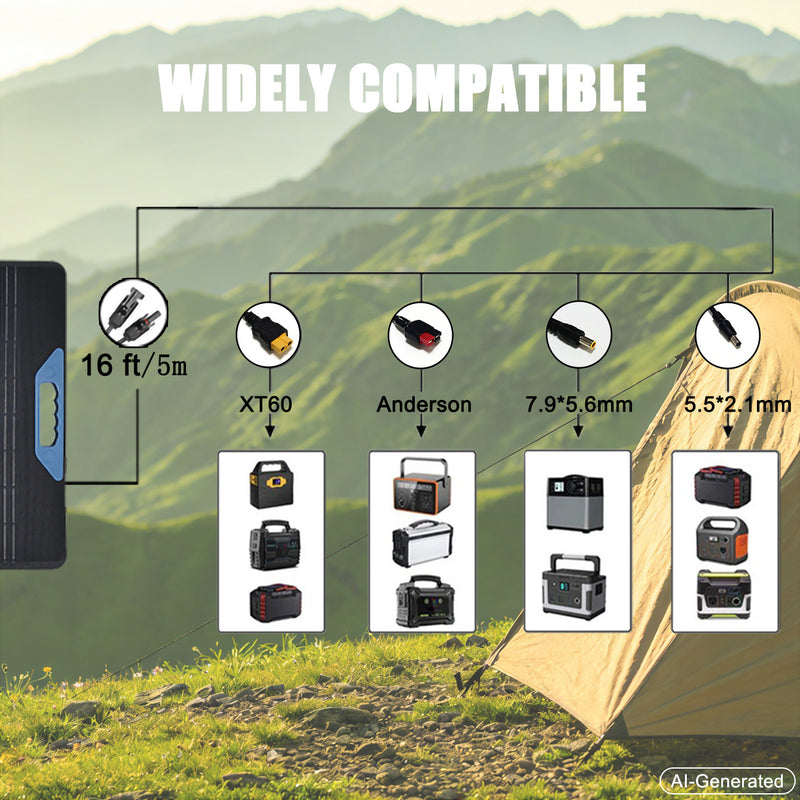

3.High Compatibility: Standard 5m/16ft MC4 cable, 4-in-1 adapter cable, fits Anderson/DC5521/XT60/DC7956, seamlessly connecting most power stations

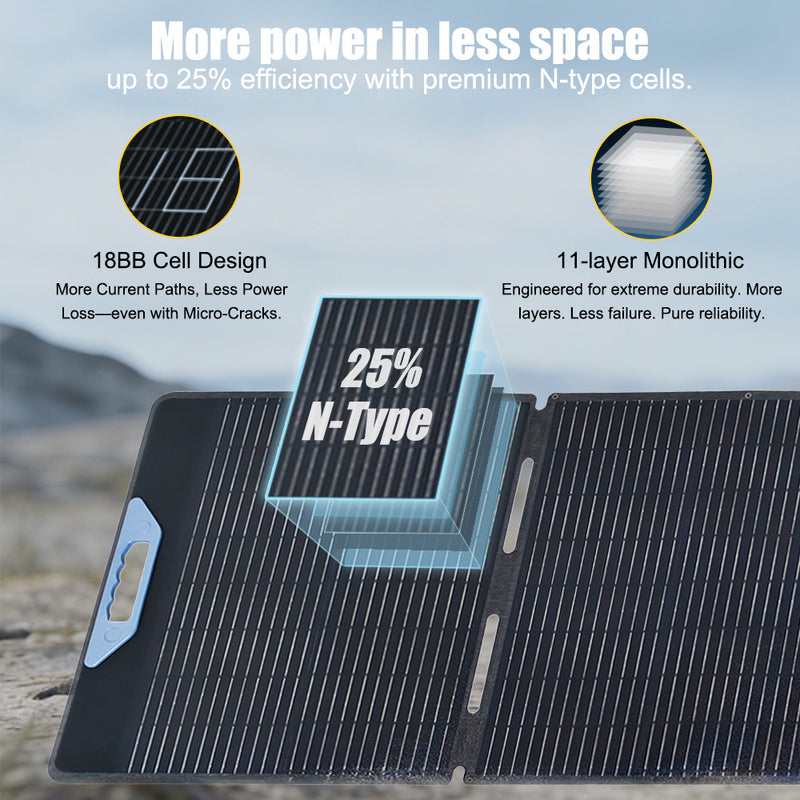

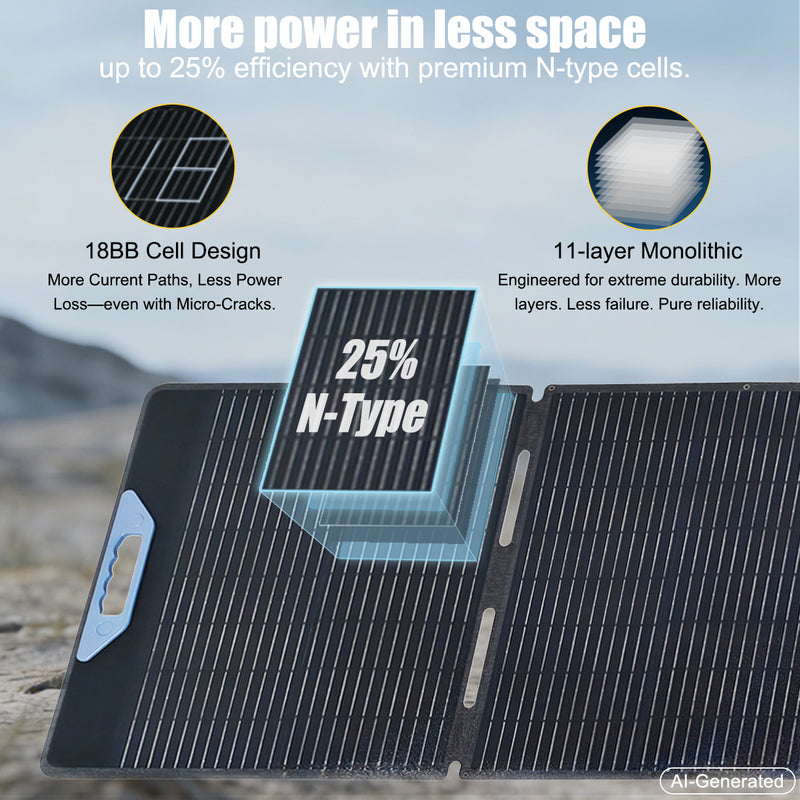

4. N-Type Solar cell: Advanced 18BB N-type cells (25% efficiency) deliver more power from the same size—perfect for camping, RVs, and backup power.
5. IP67 Waterproof: Advanced one-piece lamination resists scratches, UV, and wear—ensuring reliable power in harsh or emergency conditions.
6. Premium ETFE Film: High light transmittance with heat, UV, and corrosion resistance—plus self-cleaning for consistent performance.

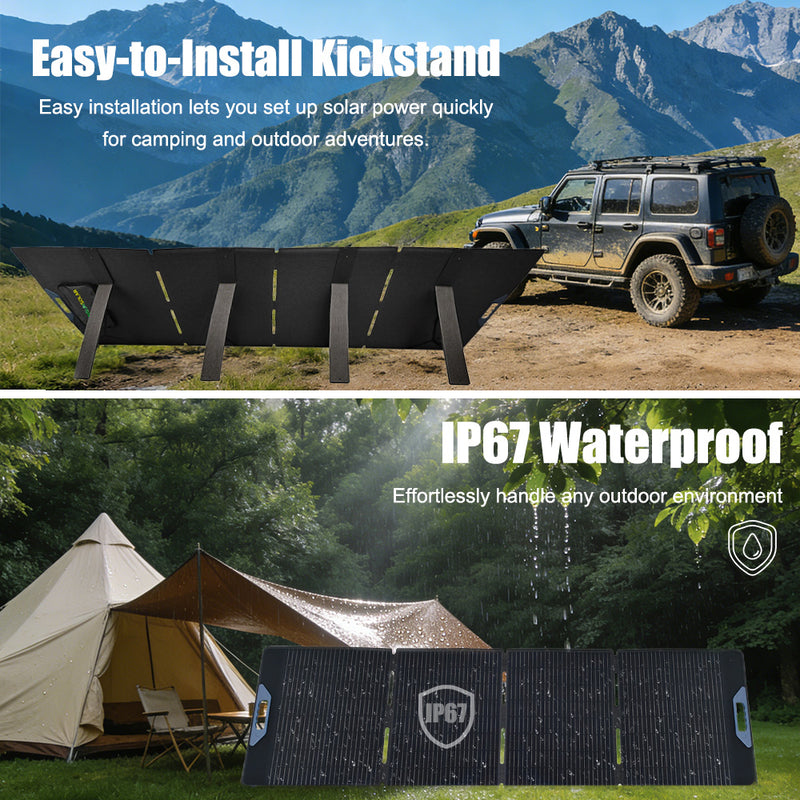

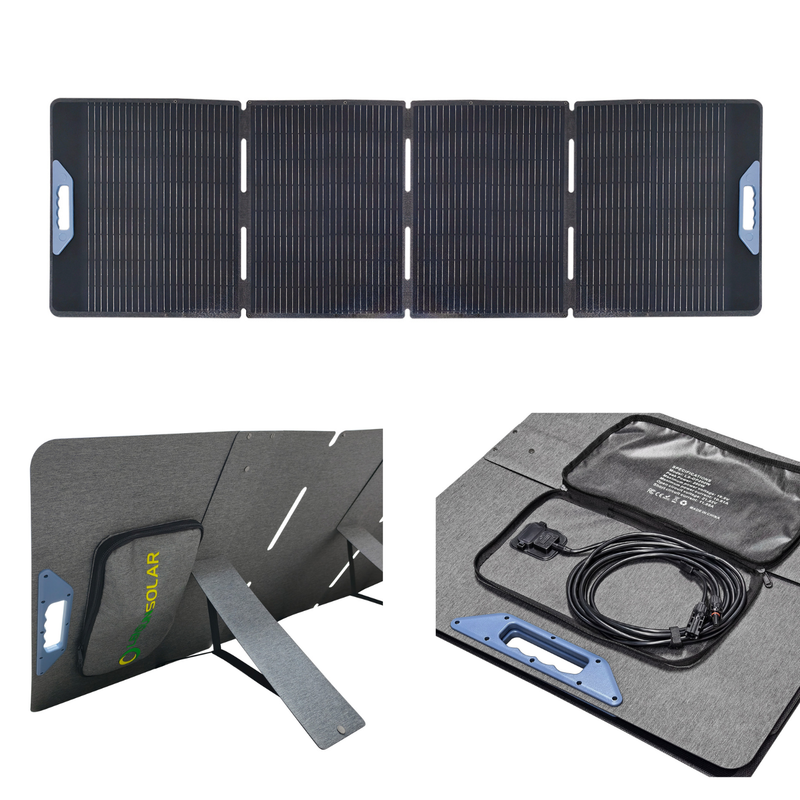

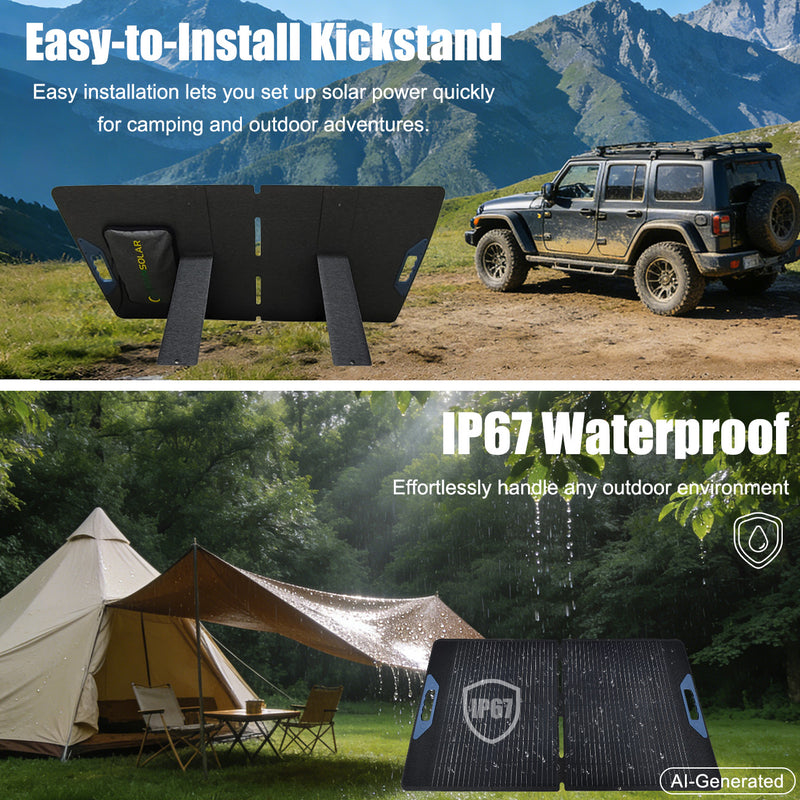

7. Kickstands design: Kickstands designs get up to 30% more solar energy than flat laying.

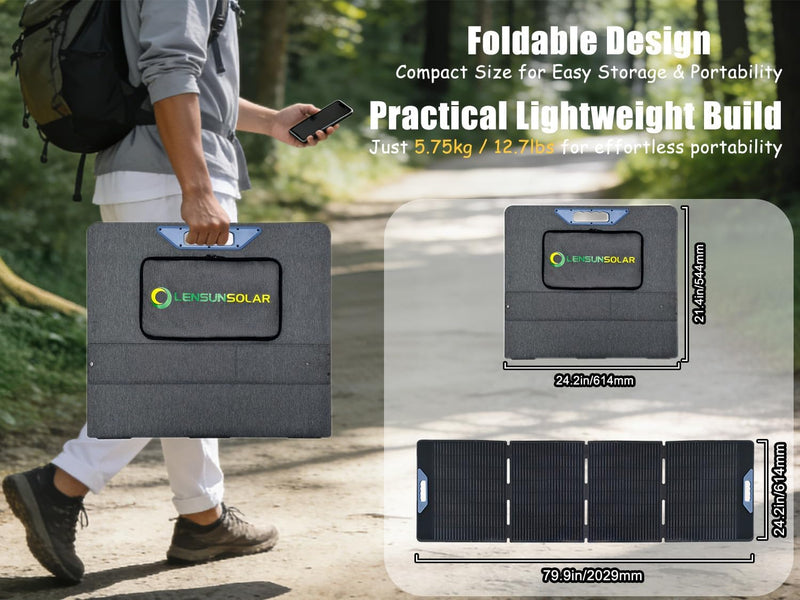

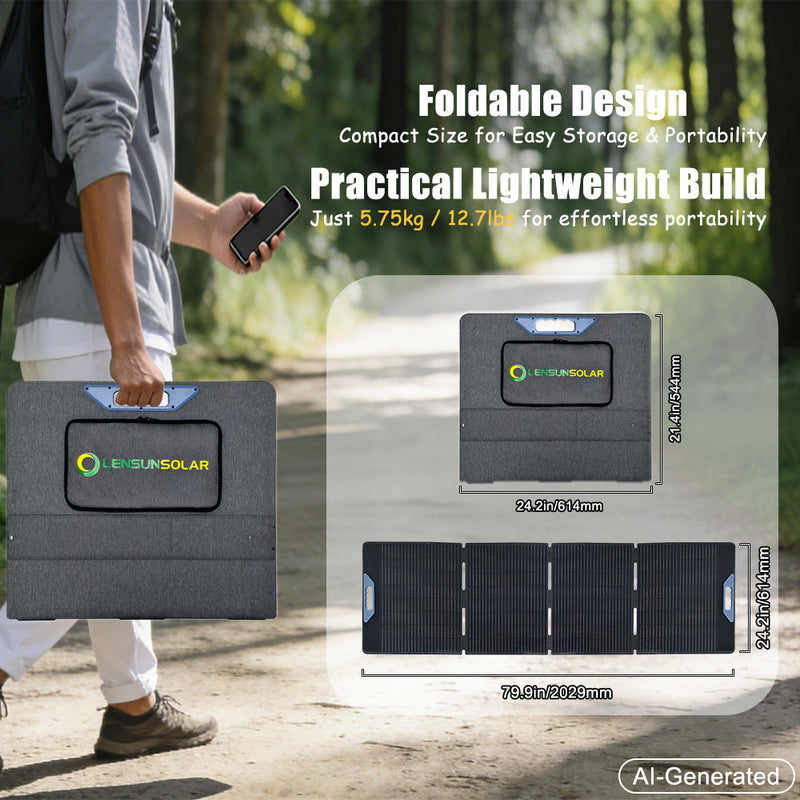

8. Lightweight: Weighing only 5.75 kgs/12.7 lbs, Lensunsolar portable solar panel is the lightest in its class. Innovative folding design packs down to 24.2 x 21.4 in/614 x 544 mm.
9. Optional plug-and-play 20A waterproof MPPT controller—pre-wired with fuses and connectors, featuring smart protection (reverse polarity, overcharge) and compatibility with sealed, AGM, Gel, and Lithium batteries.
Specifications:
Model: OP200W
Rated Power Output: 200W
Optimum Operating Voltage [Vmp]: 18.5V
Optimum Operating Current [Imp]: 10.81A
Open Circuit Voltage [Voc]: 21.83V
Short Circuit Current [Isc]: 11.89A
Cell Technology: Monocrystalline Solar Cells
Solar Cells Efficiency: 25%
Production Tolerance: +/-3%
Output Type: 5m/16ft solar cable with solar connector

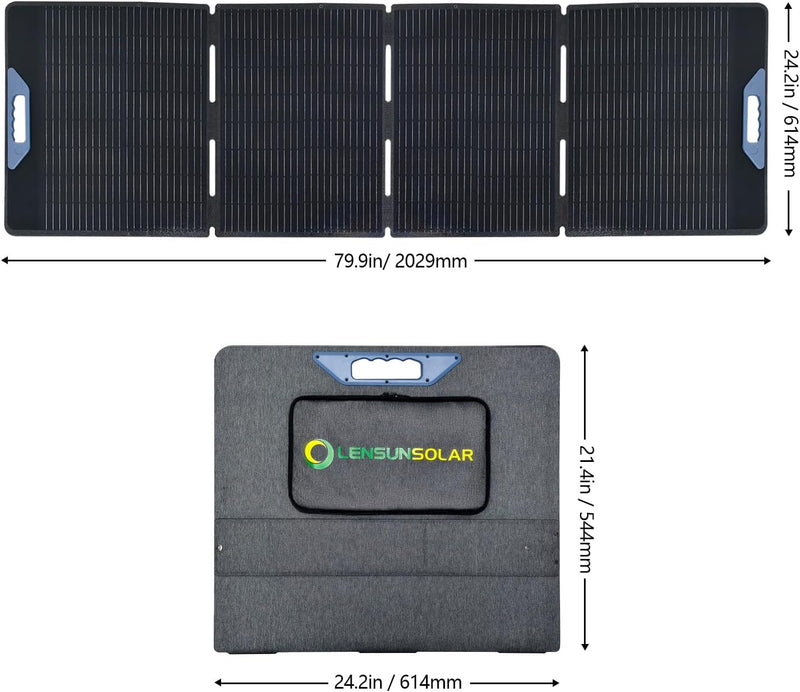

Dimensions(unfolded): 2029 x 614 x 25 mm/79.9 x 24.2 x 1 in
Dimensions(folded): 614 x 544 x 40 mm/ 24.2 x 21.4 x 1.6 in
Net. Weight: 5.75 kgs / 12.7 lbs
All Technical data at standard test conditions AM=1.5, E=1000W/mm, Tc=25℃

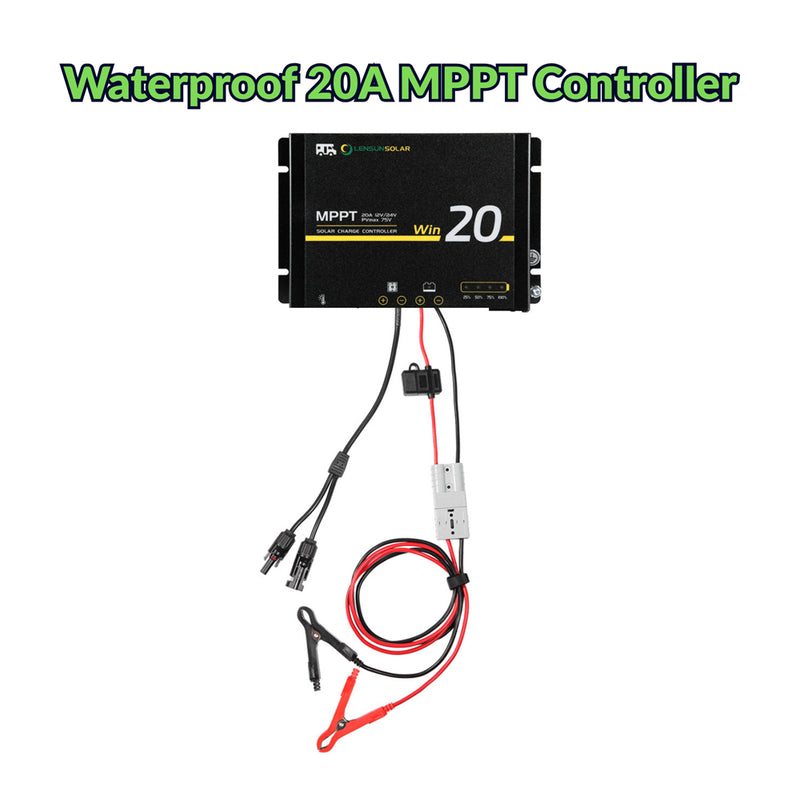

20A Waterproof MPPT Solar Controller
Includes battery alligator clips and solar connectors—ready to work with Lensun or any standard solar panel.
Advanced MPPT, common-negative design, and full protection (reverse polarity, overcharge, short-circuit, reverse current). Bluetooth-enabled for app monitoring. Compatible with LiFePO4, lithium, AGM and Gel batteries
Specification:
Solar Panel Parameters
Max volt on PV(-20℃): 75V
Max volt on PV(25℃): 70V
Max input power: 260W/520W
MPPT tracking range: (Battery Voltage + 1.0V) ~Voc*0.9
Battery Parameters
System voltage: 12/24V automatical recognization
Max charging current: 20A
MPPT charging voltage: <14.5/29.0V@25℃
Max volt on bat terminal: 35V
Battery type: Gel, AGM, Liquid, Lithium(default: Gel)
Max tracking efficiency: >99.9%
Max conversion efficiency: 98.0%
Dimensions: 164x109x32mm/6.5x4.31.3 inch
Weight: 900g
Communication: BLE
Protection degree: IP54

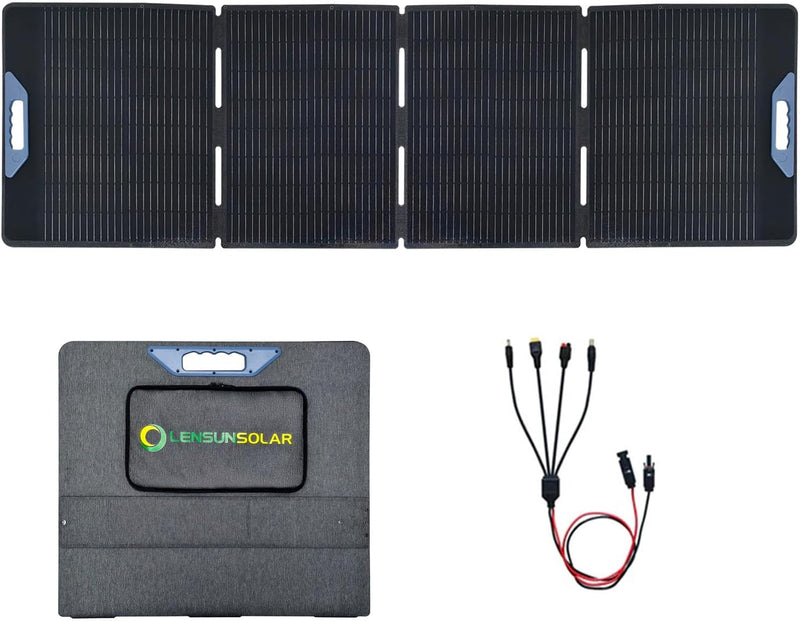

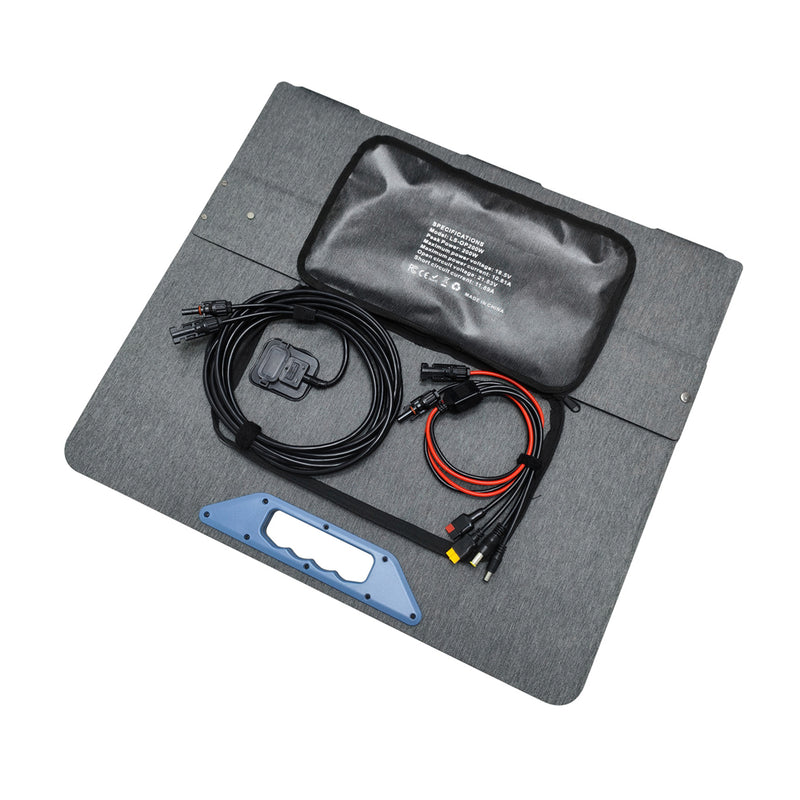

Packing:
1 x 200W waterproof foldable solar panel
1 x 4 in 1 adaptor cable (DC 8mm, DC 5.5x2.1mm, Anderson, XT60)
1 x 20A Waterproof MPPT solar controller( (at your option)
