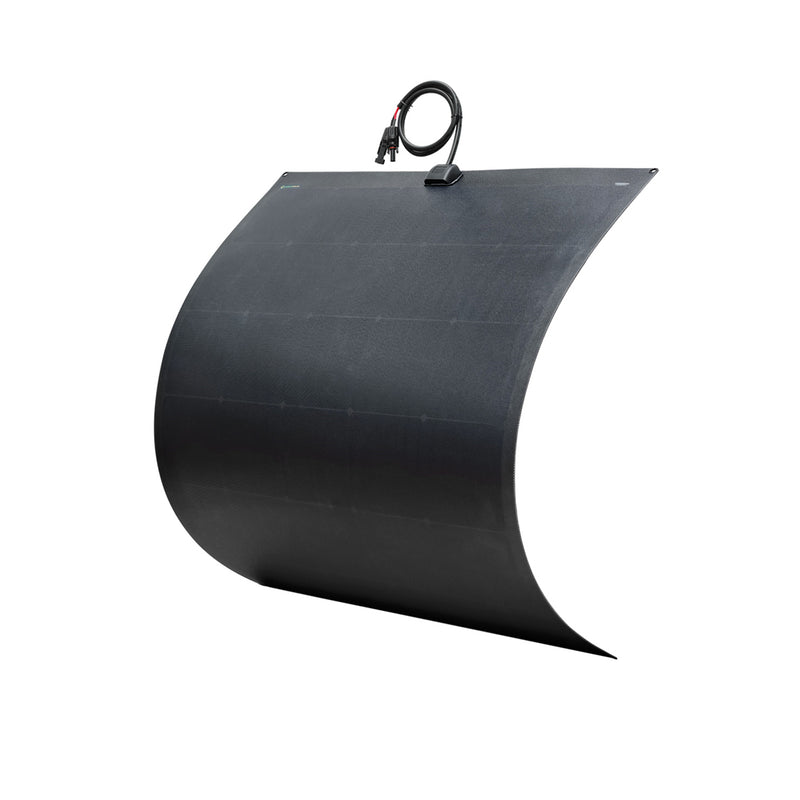

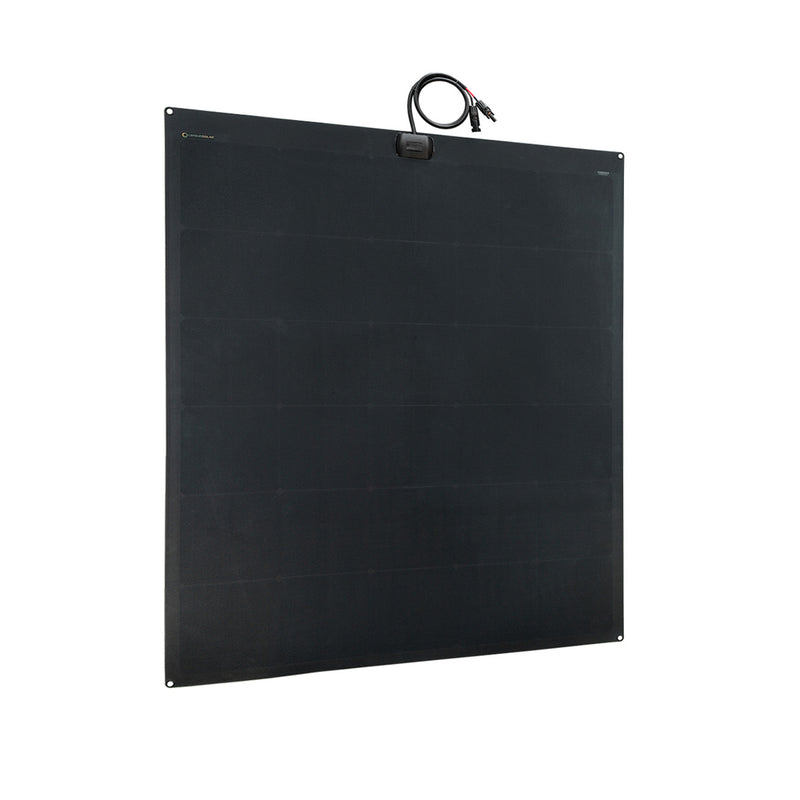

Lensun 230W 12V Full Black Flexible Solar Panel
The LensunSolar Flexible Solar Panel is a highly efficient and innovative choice for RVs, campers, boats, roof tents, and other applications. Featuring BC (Back Contact) technology, it offers up to 25.8% efficiency, superior durability, and a sleek all-black design, making it an ideal solution for those seeking both performance and aesthetics.
Feature
1. BC (Back Contact) Solar Cell: No front gridlines. Efficiency up to 25.8%. Without metal lines on the front, more sunlight hits the cell directly, increasing the amount of electricity generated and demonstrating an average power output increase of up to 10 percent over PERC products in typical scenarios.
2. Enhanced Performance: Less heat buildup, with fewer components on the front, BC solar cells can stay cooler, which helps maintain their efficiency over time.
3. Durability: The unique design can make BC cells more robust and less prone to damage, extending their lifespan. It has excellent light decay resistance performance and mechanical load performance; Low temperature coefficient, higher temperature resistance, and high efficiency
4. Sleek Appearance: The electrical contacts are positioned on the back of the solar cells, allowing for a completely black, gridless surface with an exceptionally smooth aesthetic. Appealing to customers seeking visually attractive solar solutions.
5. Ultra-thin & Lightweight: At only 0.1 inches thick. Lightweight, 4.6bls/2.1kgs weigh approximately 30% of a glass-framed one. Perfectly suited for RV, boat, roof tent.
6. Installation: This can be fixed by adhesive, zip ties, or velcro, and can be installed without costly structural roof reinforcements.
7. Fitting: The optional 20A solar controller, and16ft/5m extension cables.
Specification:
Peak power: 230W
Solar cell efficiency: 25.8%
Maximum power voltage: 18V
Maximum power current: 12.77A
Open circuit voltage: 21.24V
Short circuit current: 14.05A
Power allowance range: +/-3%
Maximum system voltage: 500V
Cable: 3.3ft/1 meter

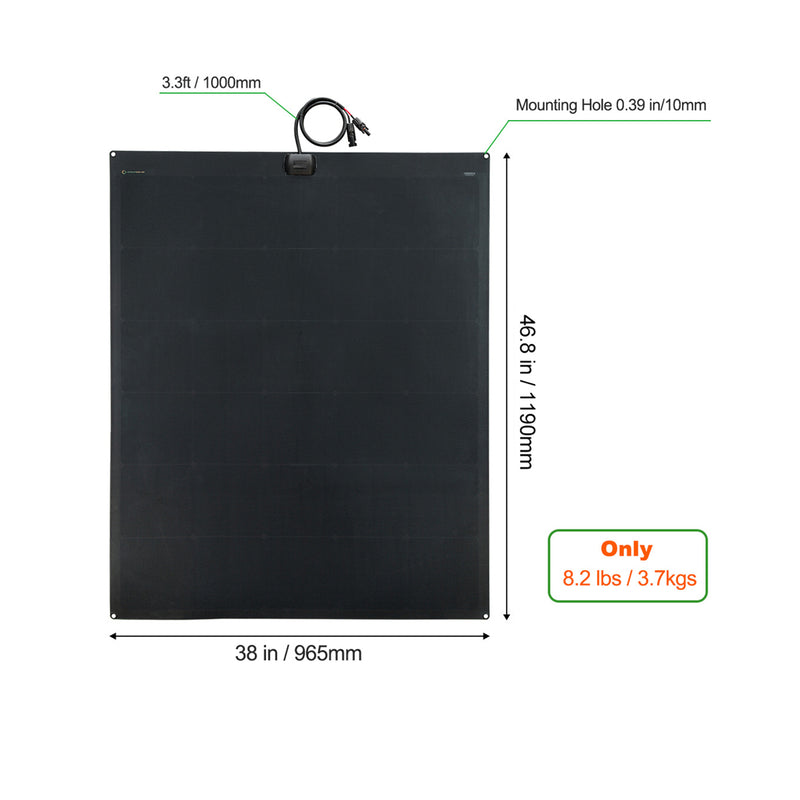

Dimensions: 1190x965x2.5mm /46.8x38x0.1 inch
Net Weight: 3.7kgs/8.2 lbs
Values at standard test conditions: Air Mass - AM1.5, Irradiance - 1000W/m2, Cell Temperature - 25°C

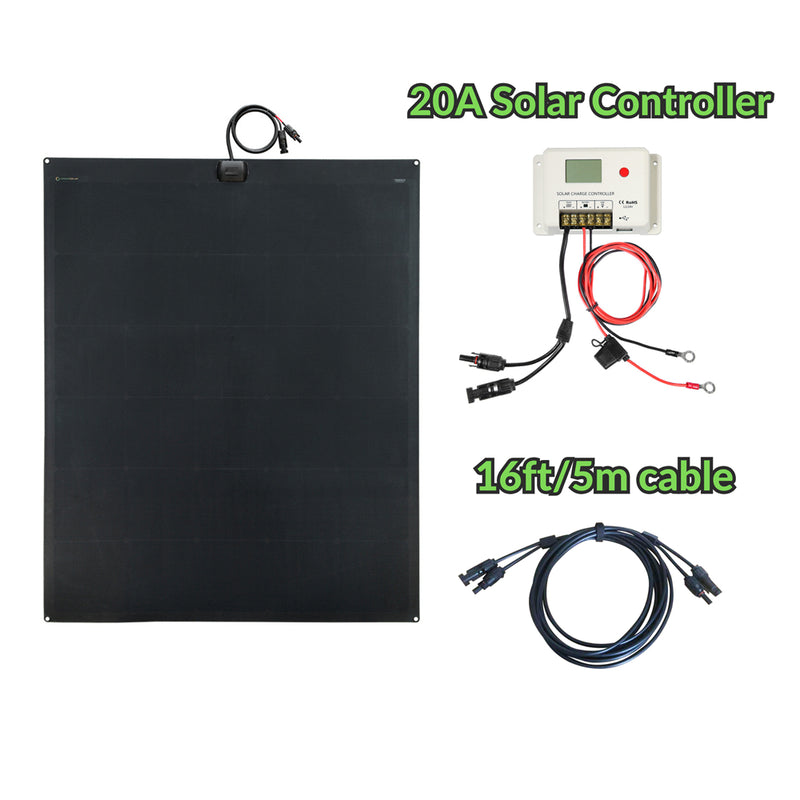

Packing:
1x Lensun 230W Black Flexible Solar Panel
1x 20A Solar Controller (at your option)
1x 16ft/5m extend cable (at your option)
